  1. #1
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink SALE 1 Pair of Wavecor WF182BD03-01 midbass driver's 7" kondisi BARU..........2jt

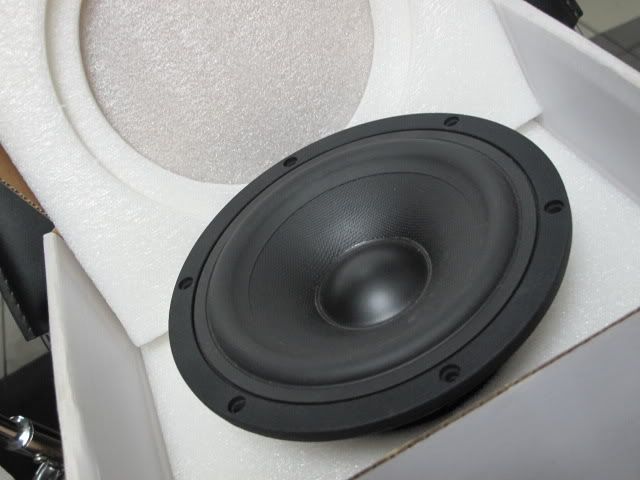

    SALE 1 Pair of Wavecor WF182BD03-01 midbass driver's 7", die cast alu, 120 mm ferrite, cu cap, 1" VC, 4 ohm kondisi BARU.....2jt



    Price $276.00

    The 7 transducers WF182BD03 (4 ohm) and WF182BD04 (8 ohm) were designed as high performance bass and midrange units for monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange..

    FEATURES

    * Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced 2nd order harmonic distortion
    * Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
    * Black coated semi-air-dried paper cone
    * Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
    * Vented voice coil former for reduced distortion and compression
    * Vented center pole with dual flares for reduced noise level at large cone excursions
    * Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
    * Large motor with 1 voice coil diameter for better control and power handling
    * Built-in alu field-stabilizing ring for reduced distortion at high levels
    * Low-loss suspension (high Qm) for better reproduction of details and dynamics
    * Black motor parts for better heat transfer to the surrounding air
    * Conex spider for better durability under extreme conditions
    * Gold plated terminals to ensure long-term trouble free connection

    Wavecor WF182BD03-01 (ea.) midbass driver's specifications
    Nominal size 7 [inch.]
    Nominal impedance 4 [ohm]
    Recommended max. upper frequency limit 3 [kHz]
    Sensitivity, 2.83V/1m (average SPL in range 300 - 1,000 Hz) 91 [dB]
    Power handling, continuous, IEC 268-5, no additional filtering 100 [W]
    Effective radiating area, Sd 131 [sq.cm]
    Resonance frequency (free air, no baffle), Fs 35 [Hz]
    Moving mass, incl. air (free air, no baffle), Mms 17 [g]
    Force factor, Bxl 6.5
    Suspension compliance, Cms 1.2 [mm/N]
    Equivalent air volume, Vas 29 [lit.]
    Mechanical Q, Qms 11.6
    Electrical Q, Qes 0.29
    Total Q, Qts 0.28
    Voice coil resistance, RDC 3.2 [ohm]
    Voice coil inductance, Le (measured at 10 kHz) 0.091 [mH]
    Voice coil inside diameter 39 [mm]
    Voice coil winding height 15 [mm]
    Air gap height 5 [mm]



    http://www.audiomania.com/shop/goods-11222.html














  2. Ysbjaya88
  3. #2
    Letnan Dua
    Location
    jakarta
    Posts
    1,481
    Power
    11
    M-Store Point
    0
    Online
    3 Wks 10 Hrs 44 Mins 56 Secs
    barang langka...

    btw, kl ini bagusnya buat sub or mid ya??

    buat SQL kayaknya cocok banget nii...


  4. #3
    Letnan Dua
    Location
    jakarta
    Posts
    1,481
    Power
    11
    M-Store Point
    0
    Online
    3 Wks 10 Hrs 44 Mins 56 Secs
    UP dulu.. si Bozz lg on VACATION.. jd buyers harap bersabar dikit..



  5. #4
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    thanks yach bos andry............


  6. #5
    Letnan Dua
    Location
    jakarta
    Posts
    1,481
    Power
    11
    M-Store Point
    0
    Online
    3 Wks 10 Hrs 44 Mins 56 Secs
    UP UP UP UP UP


  7. #6
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    thanks yach bos andry...........


  8. #7
    Letnan Dua
    Location
    jakarta
    Posts
    1,481
    Power
    11
    M-Store Point
    0
    Online
    3 Wks 10 Hrs 44 Mins 56 Secs
    UP UP UP...


  9. #8
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    thanks yach bos andry.............
