    Exclamation (((((........SPEAKERS LIST........)))))

    3 way lunar kondisi nos,come in box n passive cross.............





    Di design driver dan pasif x-overnya di Indonesia.... dengan simulasi pengukuran langsung pada mobil dan ruang pengukuran, dibuat berdasarkan rata2 karakter kesukaan orang Indonesia.....

    Driver dibuat oleh salah satu pabrikan speaker terbesar di Eropa, berdasarkan permintaan dan design dari kami .....

    Software yang digunakan antara lain ATB Professional ( sampe sejauh ini yg memiliki ada 2 di Indo.....selain kami, yaitu Sinar Baja Elektrik, pabrik speaker besar asal Surabaya), Atb Pc Pro,
    Lms, Clio, dan LspCad.

    Driver tweeter kecil ditambah midrange 3", memungkinkan penggunaan box yg tidak terlalu besar sehingga pandangan tidak terganggu ....

    Karakter secara umum suaranya smooth, natural..... hi freq cukup detail namun tidak cenderung bright/harsh .... mid/vocal yang open/lepas dan transparan. Sedikit warm/tebal....low freq(bass) yang galak dengan kontrol yg baik, dinamis dan tight.

    Dalam satu bundling terdiri atas driver tweeter+midrange+midbass dan pasif x-over untuk tweeter+midrange.....untuk midbass direkomendasikan main aktif.
    Pasifnya sendiri sudah ada konfigurasi jumper untuk phase tweeter, level db tweeter, dan bi-amp konfigurasi....jadi kalau ingin merubah phase corecction tweeter tidak perlu membalik kabelnya lagi, tinggal pindahin/geser switch phase.....juga jika ingin menggunakan bi-amp system, tinggal pindahin jumpernya saja..... dan jika ingin menurunkan atau menaikkan level db tweeter sebesar +- 3db tinggal geser switch nya saja....


    call
    081388575788



  2. Eagle Eyes
  3. #2
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink 3 way Vifa PL-18,PL-11 n XT-25SC plus custom passive crossover...........

    titipan temen nich bos...

    3 way Vifa PL-18,PL-11 n XT-25SC plus custom passive crossover (by suhu Kevin Ultrapath)..........3,1jt




    call
    081388575788












  4. #3
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink NEW Wave 2 way (best buy speaker for the price n sound quality comparison)...

    NEW Wave 2 way component speaker (best buy speaker for the price n sound quality comparison)...........................

    karakternya smooth,deep,tapi live....
    ukuran magnet midbass besar (15 oz ),sensitivity 92db....
    tweeter bagus top end nya dengan neodymium magnet......
    conus fiberglass yang rigid.....
    chassis no ringing....


    call
    081388575788















  5. #4
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink McIntosh 2 way speaker system....................

    McIntosh 2 way speaker system....................2,25jt



    MSS470 Component 2-way system 5-1/4" woofers with LD/HP design
    mineral filled polypropylene cones
    and butyl rubber surrounds
    High temperature Kapton voice coil formers
    Ultra high temperature adhesives
    1" aluminum dome tweeters with magnetic fluid cooling and Neodymium magnets
    Response 60 to 22kHz
    Output level 87dB/1w/1m
    Power rating 100w
    Woofer mtg depth 2-1/2"
    Mounting hole size 4-7/8" dia
    Overall grille size 5/8"H and 6-5/16" dia




    call
    081388575788












  6. #5
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink Hi-end Eton 7-370/32 LH HEX- b 7 inch black hexacone woofer kondisi NOS..........

    Hi-end Eton 7-370/32 LH HEX- b 7 inch black hexacone woofer kondisi NOS.........

    ini driver yang digunakan di avalon...



    call
    081388575788



















  7. #6
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink SEAS 3 inch aluminium cone midrange driver w/ phase plug............

    SEAS 3 inch aluminium cone midrange driver w/ phase plug...........




    call
    081388575788










  8. #7
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink SEAS tweeter (spec n suara persis sama dengan scanspeak 9700)......1,25jt

    SEAS tweeter (spec n suara persis sama dengan scanspeak 9700)......1,25jt

    suaranya dynamic dan detail,top end nya ok.....






    ScanSpeak D2905/9700 28 mm Dome Tweeter

    The Scan-speak D2905/9700 uses the same hand coated dome and voice coil of the D2905/9500, but uses the motor system of the Revelator. The Symmetric Drive technology eliminates almost all electrical phase shift. The carefully machined top plate minimize air noise and compression. Copper caps act as heat conductors. High power handling is achieved without ferrofluid and improves micro-dynamic linearity. The tweeter has excellent dynamic and detailing capability.





    TECHNICAL DATA of SEAS TWEETER or SCANSPEAK 9700 :

    Sensitivity 2.83V/1M 89.5dB
    Free air resonance Fs 500 Hz
    DC resistance 4.7 W
    V.C. inductance 0.01 mH
    Power 225W@2.8kHz
    Effective cone area 8.5 cm2
    V.C. diameter 28 mm
    Lin. & max. excursion 0.4/ 1.5 mm
    Air gap flux density -
    BL 3.5 Tm
    Moving mass incl. air 0.45 g



    call
    081388575788






  9. #8
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink NEW PHASS 6,5 inch midbass MD6517.............

    NEW PHASS 6,5 inch midbass MD6517.............



    PHASS / ???
    MD 6517

    ???47,250????)
    16,5cm
    ???????
    ???????????120?
    ??165mm
    ????????
    ?????142mm /?????58mm
    91dB ??????? 6?
    70Hz-7KHz

    ?????????????????????????????????????????????????? ??????????????????????????????????

    ????????????????????????????????????????????



    MD6517 midbass consists of the light weight and durable natural fiber(paper) cone with the optimal internal loss and the rounded natural fabric edge which are produced by Japanese traditional skilled craftsman and the powerful ferrite magnet, CNC lathed precise metal part. It realize the ability of expression for the detail of music vividly.

    MD 6517 6.5" mid bass specifications:

    Music power: 120W;
    Sensitivity: 91dB;
    Frequency response: 70-7,000Hz;
    Outer dimension: 165mm;
    Fixing hole: 142mm;
    Installing depth: 58mm;
    Impedance: 6ohm

    Made in Japan
    PHASS MD6517
    Price 370.00



    call
    081388575788











  10. #9
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

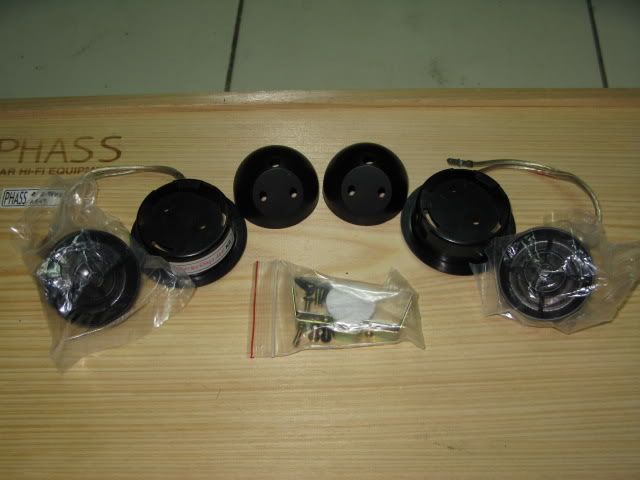

    Wink PHASS NT 28BM & NT 28B kondisi BARU......

    The M&T Series speakers from Phass are the new generation of high-end speakers. With years of meticulous testing and development behind them, the focus has been a strong emphasis on pure sound quality. Reproduction of music with crystal clarity and deep rich bass that balances every tone to perfection. Developed to satisfy all music lovers, from the everyday driver to the most discerning audiophile, these speakers are setting a new bench-mark for sound quality and performance.



    PHASS / ファスNT 28BM 定価 29,400円(税込)
    PHASS NT 28BM............harga normal 29.000 yen................1,4jt


    PHASS / ファス NT 28B 定価\24,150(税込)
    PHASS NT 28B.....harga normal 24.150 yen...............................1,1jt

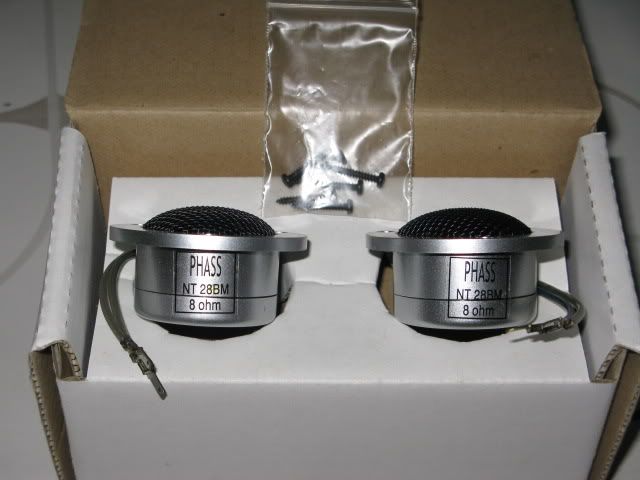

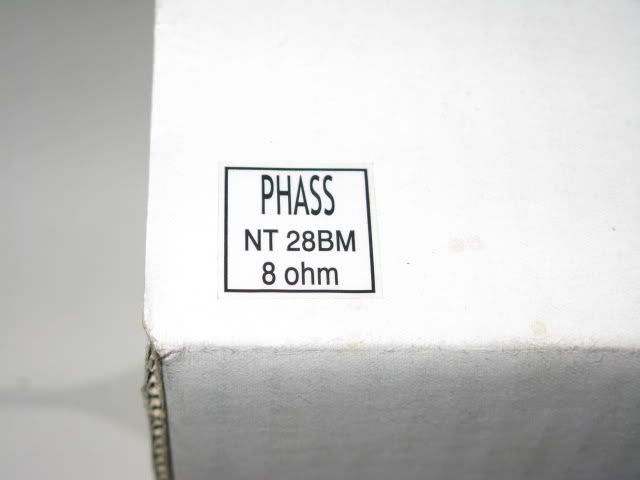

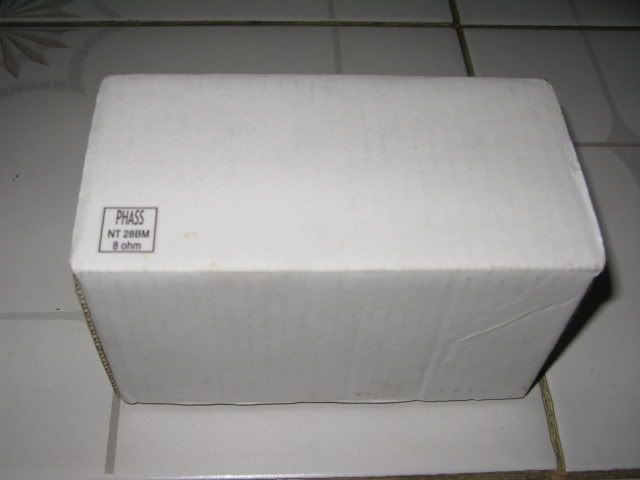

    PHASS NT 28BM

    NT 28BM tweeter is carefully designed to optimize the linearity of frequency response and the effect in superb clarity and detail.
    This tweeter equipped with 28 mmd diameter aluminum flat wire voice coil which is mounted very close to the carefully treated silk diaphragm to reduce its rocking tendency, further inside metal parts of unit are CNC lathed precisely and installed by precision machines. It also enables the reproduction of very dynamic signals with extremely low levels of compressions because of the combination of the optimized damping by the rear chamber. Its fine construction provide accurate, smooth frequency response and a beautiful treble tone that's clear, detailed and sweet, further reducing distortion.


    NT28BM
    Outer dimension: 62mm,
    Fixing hole diameter: 45mm,
    Installing depth: 23mm
    Impedance: 8 ohm

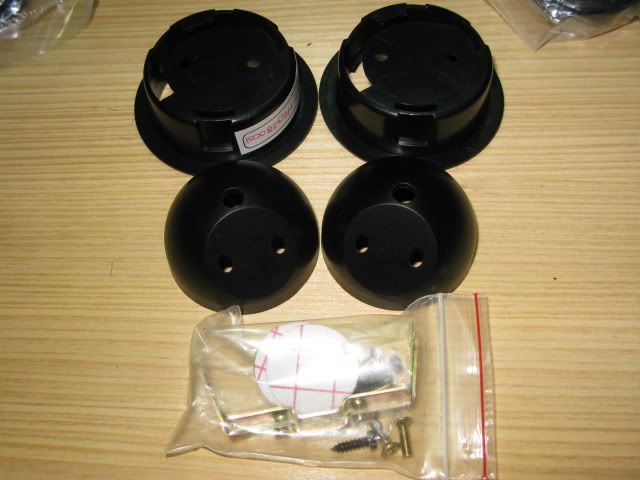

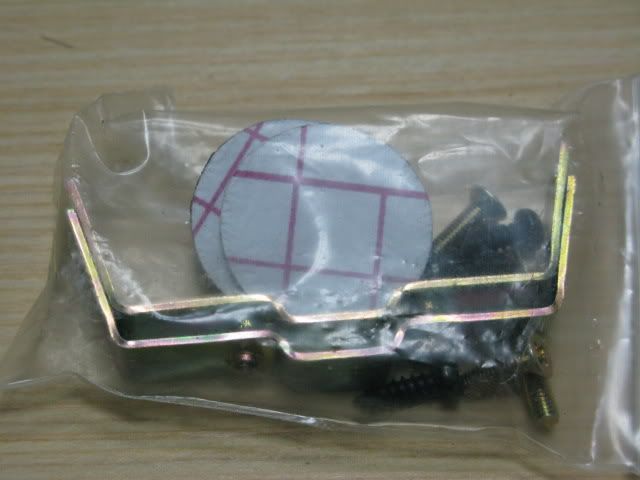

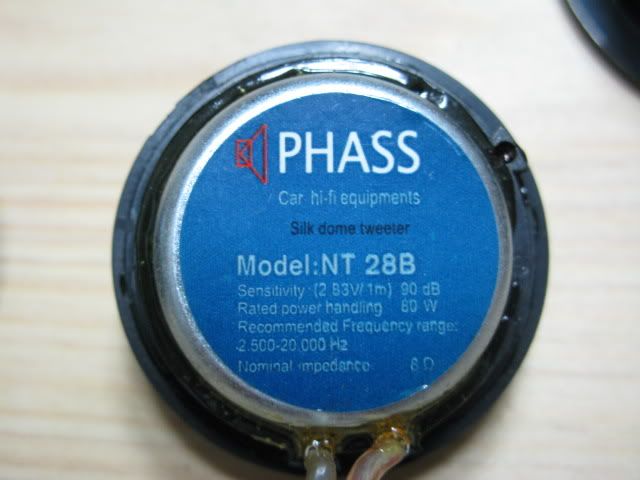

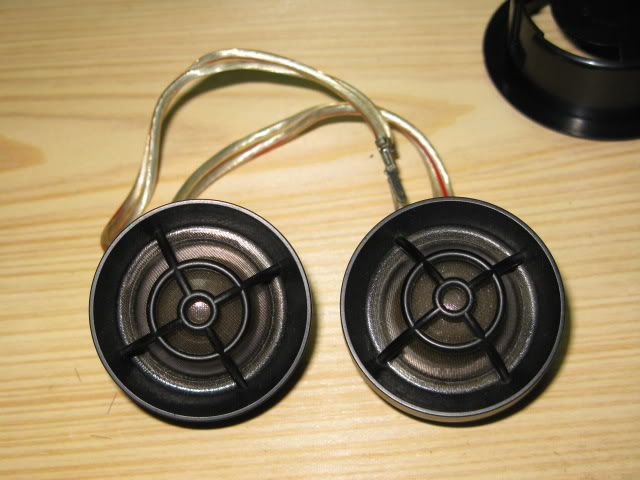

    PHASS NT 28B

    NT28B is the high grade tweeter and has the combination of 28mm large diameter voice coil and the Silk fabric diaphragm by neodymium magnet driving. It realized the harmonious connection with a mid bass thanks to its wide frequency band and high efficiency, it shows high reproduction ability for vivid, details and smooth high frequency range.

    NT 28B 28 mm silk tweeter specifications:

    Music power: 80 W;
    Sensitivity: 90 dB;
    Frequency response: 2,500-20,000 Hz;
    Outer dimension: 45 mm;
    Impedance: 8 ohm













    call
    081388575788


  11. #10
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs

    Wink PHASS T650 E 2-way component system (type terbaru dari phass)...............

    PHASS T650 E 2-way component system (type terbaru dari phass)...............


    NEW!!! T650E

    Phass T 650E - 2 way system. The combination of MD6517 mid bass consists of the light weight and tough paper cone and the silkfabric 28mm tweeter Phass NT28BM realizes the unification of two units.Its sound from T650E is really tasty and deep.

    Technical specification:
    Music power: 120W;
    Frequency response: 70-20,000Hz;
    Mid bass (MD 6517) outer dimension: 165mm, Fixing hole: 142mm, Installing depth: 58mm;
    Tweeter (NT28BM-S) Outer dimension: 62mm, Fixing hole diameter: 45mm, Installing depth: 23mm,
    Crossover: PX 202W.

    NEW!!! T650E
    Price 579.00


    ini link nya boss : http://www.phass-europe.com/en/products/speakers/p55.html



    call
    081388575788
