    Cool Hi-end HELIX A4 Competition amplifier kondisi muluuuuus sekali (sold,thanks modcom..)

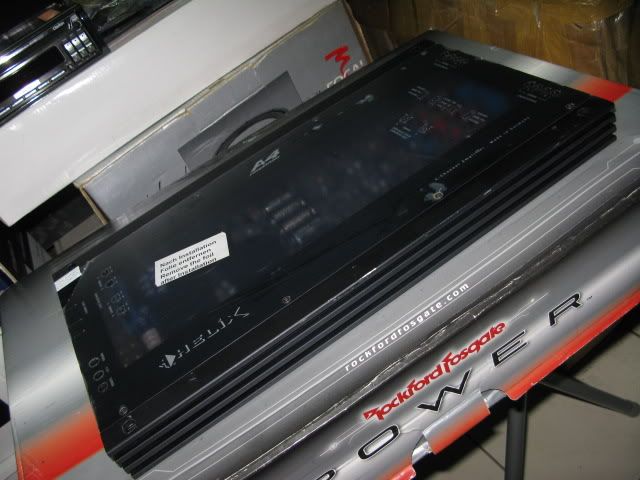

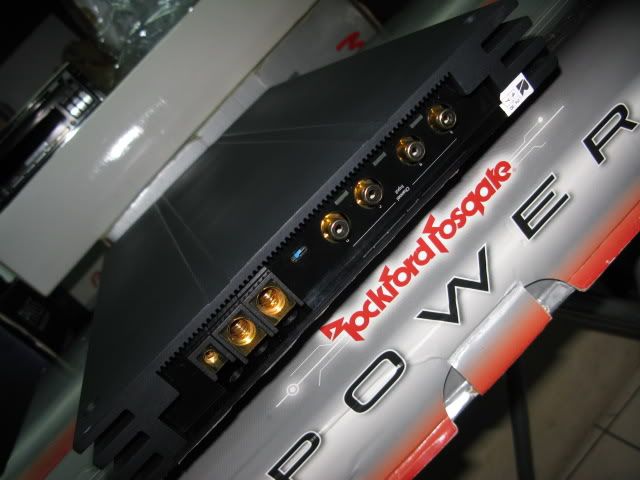

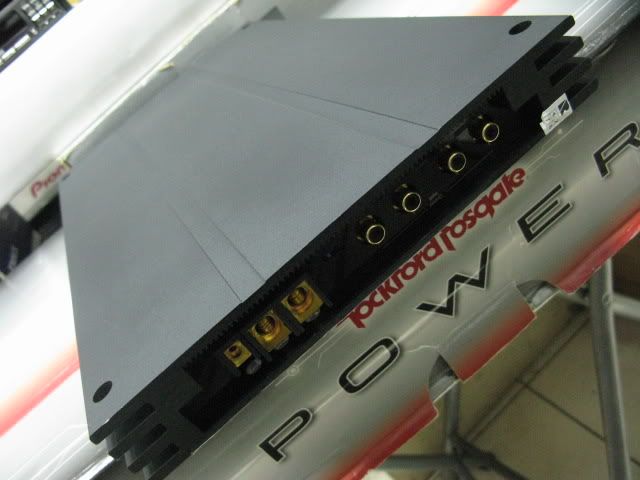

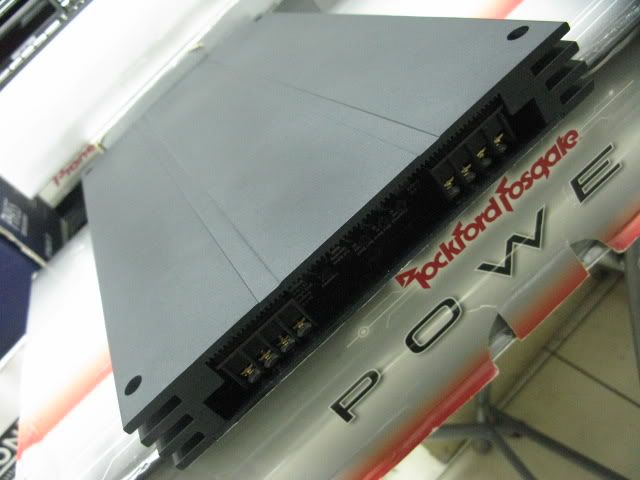

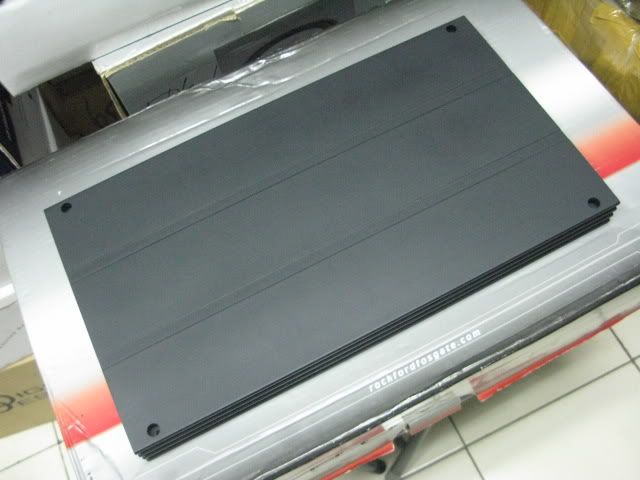

    Hi-end HELIX A4 Competition amplifier kondisi muluuuuus sekali..............sold



    Helix

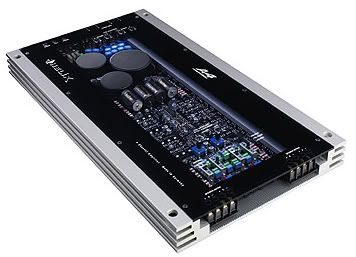

    A4 Competition - Helix 4 Ch 4x85/170 Watt High-End Amplifier

    Retail Price $1,210.90

    Amplifiers
    Four Channel

    Features:

    * Cont. power rating RMS/Max. power at 4 Ohms RMS/12 V: 4 x 60/85 Watt
    * Cont. power rating RMS/Max. power at 4 Ohms RMS/13,8 V: 4 x 85/160 Watt
    * Cont. power rating RMS/Max. power at 2 Ohms RMS/13,8 V: 4 x 153/300 Watt
    * Cont. power rating RMS/Max. power at 4 Ohms RMS/13,8 V bridged: 2 x 270/450 Watt
    * Cont. power rating RMS/Max. power at 2 Ohms RMS/13,8 V bridged: 2 x 395/650 Watt
    * Total harmonic distortion: < 0,009%
    * Signal to noise ratio: > 100 dB
    * Damping factor: > 450
    * Frequeny range: 20 Hz -20 kHz
    * TIM distortion: < 0,016%
    * Input sensitivity: 500 mV - 8 V
    * Fuse: 3 x 25 A
    * Input impedance: 10 kOhm
    * Bassboost adjustable channel C und D: 0 - 9 dB
    * Dimensions (HxWxD) mm: 35 x 240 x 432
    * Weight net: 4,7 kg
    * Driver with class A technology
    * Outputstage with 24 MosFet transistors
    * RMI (realmixed input) for forming an optimised mono-summation signal from the left and right channels
    * NFI (noisefree input) for distortion-free listening
    * Intelligent active crossover
    * Bass Boost Control 0-9 dB, adjustable center frequencies 30-120 Hz
    * Mono/Bridged/ Stereo switch
    * 8.0 volt input for connection to any signal source
    * ADC - Anti Distortion Choke to eliminate distortions
    * Intelligent temperature and power controlled switching power supply
    * Separate speaker protection circuit with current limitation for speaker short-circuiting, cable contact with car chassis, low impedance and wrong connection
    * CPS - Color Protection System
    * SMD - Surface Mounting Devices for constant assembling quality
    * Double-sided, extra strong (2x 110u) and copper plated pc-board for best power and signal transmission and protection against vibrations
    * 24-karat gold-plated solid connectors suitable for 25 mē/ gauge 4 cables
    * Temperature-optimised heatsink for highest efficiency
    * 1% accurate components for perfect audiophile sound quality and maximum power
    * Smoked-grey plexi cover with both side printing



    call
    081388575788









  2. Delapan Satu
  3. #2
    Letnan Kolonel
    Location
    cRoT YaNg KEN-TAL didlm lBH nIkMat...oh YES!
    Posts
    6,449
    Power
    178
    M-Store Point
    0
    Online
    16 Hrs 28 Mins 8 Secs
    up..............


  4. #3
    Letnan Kolonel
    Location
    klaten
    Posts
    6,539
    Power
    40
    M-Store Point
    0
    Online
    1 Mth 1 Wk 1 Day 1 Hr 40 Mins 16 Secs
    bos chris, bedanya ama HXA series apa nih? Cuman beda taun pembuatan ato kualitas jg beda? Thx


  5. #4
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    thanks yach bos eddy.....

    ini bos seri tertingginya helix bos,hxa itu seri tengah,diatasnya ada seri precision,dan yang terakhir inilah seri competition (seri tertinggi helix bos danny....)

    bodynya memang sama semua bos,tapi ada 3 seri dengan body yang sama bos...


  6. #5
    Letnan Kolonel
    Location
    klaten
    Posts
    6,539
    Power
    40
    M-Store Point
    0
    Online
    1 Mth 1 Wk 1 Day 1 Hr 40 Mins 16 Secs
    Quote Originally Posted by MR.GASOLINE View Post

    ini bos seri tertingginya helix bos,hxa itu seri tengah,diatasnya ada seri precision,dan yang terakhir inilah seri competition (seri tertinggi helix bos danny....)

    bodynya memang sama semua bos,tapi ada 3 seri dengan body yang sama bos...
    Siappp....thanks buat infonya.........jadi 2 kelas di atas HXA series yah...?
    Bisa ditandingin ama BRAX yang non GE dunk....hehehehehe


  7. #6
    Sersan Satu
    Posts
    309
    Power
    M-Store Point
    0
    Online
    4 Days 22 Hrs 57 Mins 5 Secs
    Mantab bos, laris manis komandan


  8. #7
    klo Helix ma brax si menurut saya, ga usah diragukan lagi... TOP lah.... mereka dari satu tu sodaraan... satu Ibu alias satu perusahaan bos... Laris2....


  9. #8
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    tetep beda sich bos danny,helix itu mid end dari audiotecfischer,sedangkan brax adalah line up hi-end nya bos......


    bos jas emang paling bisa nich,he.he..he....


    thanks yach bos klavier...........


  10. #9
    Letnan Jendral
    Location
    GASOLINE AUDIO STATION (Mega Glodok Kemayoran lt 6 blok f1-6)
    Posts
    24,022
    Power
    20
    M-Store Point
    0
    Online
    2 Mths 2 Wks 3 Days 3 Hrs 52 Mins 55 Secs
    up...................


  11. #10
    Quote Originally Posted by MR.GASOLINE View Post
    tetep beda sich bos danny,helix itu mid end dari audiotecfischer,sedangkan brax adalah line up hi-end nya bos......


    bos jas emang paling bisa nich,he.he..he....


    thanks yach bos klavier...........
    sama2 bos gasoline... sesama helix dilarang mendahului.... A4 laris100x...... mudah2an punya saya juga menyusul .....
