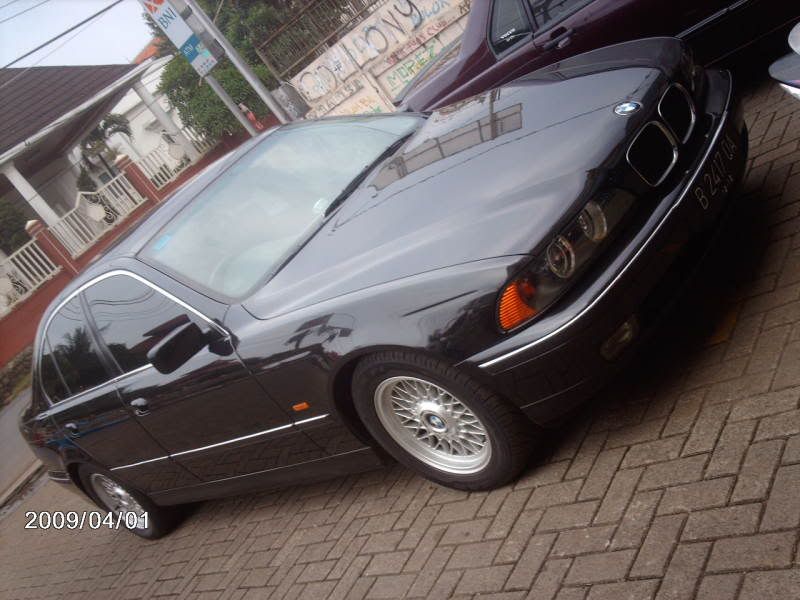

    Semoga gambarnya nongol

    BBS RS Replica by Konig




    BBS RM Mulitpiece wheel. 2 Pieces

    BBS RM is a cast 2-piece wheel. The two pieces consist of the outer "lip" or "rim" and the inside half and are held together with 30 bolts. The center cap is plastic and snaps in. These wheels were available on the '91-92 16v GTIs. They are notoriously soft, and were very expensive from the dealer when they would need replacing.

    Stock Lip-(notice how the face of the weave is flat)...unlike bbs rs's
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaGee0qpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6lQQ%7C/of=50,590,442[/img]


    With Wider Lip
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaJeloqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6GGG%7C/of=50,590,409[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe00QaQellqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQPn%7CRup6lal%7C/of=50,516,443[/img]

    BBS RS Multipiece wheel 3-Pieces (For a list of BBS P/N see 7th and 8th post down ,also remember there are so many versions of the BBS RS'. BBS RS001's and so forth, What RS's you actually have will be stamped into your wheel.)

    It is a forged 3-piece wheel that consists of an outer "lip" and an inner "lip" plus the center section. The center cap is aluminum and threaded, and attaches by screwing on to the wheel. These are very light (15 pounds each), very strong and very rare wheels, especially in the U.S. where they were never offered on any factory VW. They were offered on a few European VWs, however. These are considered some of the most sought after wheels for the "old school" VW crowd.

    (notice how the weave kinda sticks out some compaired to the BBS RM)

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0aGnqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6eae%7C/of=50,450,443[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6lQJ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe00QalnPoqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoP%7CRup6aQQ%7C/of=50,334,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe00QaJJQPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQQn%7CRup6lQQ%7C/of=50,590,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe00QaGaPaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQQl%7CRup6lQQ%7C/of=50,590,442[/img]


    BBS RZ


    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaJ00PqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6lQQ%7C/of=50,590,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaaGPGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0a%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS RF aka Design 5000's

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeeJoQqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6lQQ%7C/of=50,590,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeeJoPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0o%7CRup6G0o%7C/of=50,590,392[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaP0QQqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0o%7CRup60ea%7C/of=50,590,278[/img]

    BBS RA

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaoQlaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGG%7CRup6lQQ%7C/of=50,590,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0GloqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ00%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS CK

    [img]http://render1.snapfish.com/render2/is=Yup6G00%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeal0aqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGJ%7CRup6aQQ%7C/of=50,295,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPalalGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoG%7CRup6G0G%7C/of=50,590,394[/img]


    BBS RS-GT


    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaneP0qpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoJ%7CRup6eGn%7C/of=50,466,442[/img]

    BBS LM

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaQQeGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0J%7CRup6aQQ%7C/of=50,442,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaa0GPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoe%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS Pininfarina 4 lug(rare version)5 lug version comes on some stock vw's and are not rare

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0aGeqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGl%7CRup6G0o%7C/of=50,590,392[/img]

    BBS Pininfarina 3piece version even rarer





    BBS Moda (came in 1 and 2 piece)



    BBS RC

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaPQoGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoe%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS RC (concave Version)




    BBS RE

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPanPoJqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RG-R

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaJnlaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6Gnn%7C/of=50,590,441[/img]

    BBS RG-F

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0aGaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,442,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPanePoqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGG%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS RK

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaQPoGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ00%7CRup6G0P%7C/of=50,590,391[/img]

    BBS RS-II

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPalPQaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6eJJ%7C/of=50,476,443[/img]

    BBS RV

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPenQPlqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0a%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS RV-F

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaQl0GqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0J%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RW

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaPaaoqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPG0%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RX

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaJaoPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6lQQ%7C/of=50,590,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0alQqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS RXII

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaeQQGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0a%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS LM-R

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaP0QPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6JlG%7C/of=50,590,342[/img]

    BBS RY




    BBS CH

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPanQaeqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS CV

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPneaPGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0J%7CRup6eno%7C/of=50,447,443[/img]

    BBS DSK

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPneGPaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ00%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS GT2

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaPGalqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0a%7CRup6eoa%7C/of=50,486,442[/img]

    BBS Prima Donna

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPalPoeqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGG%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RA New Style

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPnaooQqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6eno%7C/of=50,447,443[/img]

    BBS RE-MG

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaeQJnqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RE

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPnn0n0qpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoe%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RR

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPnaGnlqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0J%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS Super RS

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPalPoaqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ00%7CRup6aQQ%7C/of=50,442,442[/img]

    Money Shot

    [img]http://render1.snapfish.com/render2/is=Yup6e0P%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe00PQaeQJqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQQe%7CRup6aQQ%7C/of=50,404,442[/img]

    The next few are very hard to find BBS Race wheels...

    BBS E16 16 inch

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaneQPqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS E26

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaGJG0qpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQJQ%7CRup6aQQ%7C/of=50,442,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaPQoJqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6eal%7C/of=50,450,443[/img]


    BBS E28

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa00ooqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0o%7CRup6enJ%7C/of=50,446,443[/img]

    BBS E30

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaQe0PqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoG%7CRup6enG%7C/of=50,445,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeeG00qpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6aQQ%7C/of=50,442,442[/img]
    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQJe0QonGnGeqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQPG%7CRup6lQQ%7C/of=50,590,442[/img]

    BBS E32

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeal0nqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGo%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS E33

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaJnllqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0P%7CRup6enJ%7C/of=50,446,443[/img]

    BBS E48

    [img]http://render1.snapfish.com/render2/is=Yup6enG%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0QPoqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,440,442[/img]

    BBS E49

    [img]http://render1.snapfish.com/render2/is=Yup6enQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaGJGJqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,437,442[/img]

    BBS E50

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaPnPlqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QPGG%7CRup6enG%7C/of=50,445,442[/img]

    BBS E55

    [img]http://render1.snapfish.com/render2/is=Yup6enG%7C%3Dup6RKKt%3Axxr%3D0-qpDPfRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPeenonqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQoG%7CRup6aQQ%7C/of=50,440,442[/img]

    BBS E75 CentreLock



    BBS E75

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPa0ePQqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0n%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS E76

    [img]http://render1.snapfish.com/render2/is=Yup6aQQ%7C%3Dup6RKKt%3Axxr%3D0-qpDofRt7Pf7mrPfrj7t%3DzrRfDUX%3AeQaQxg%3Dr%3F87KR6 xqpxQQnlx0nexnaPxv8uOc5xQQQG0GnPaGJGGqpfVtB%3F*KUp 7BHSHqqy7XH6gX0QQ0e%7CRup6aQQ%7C/of=50,442,442[/img]

    BBS RG



    bbs solitudes 15x6.5
    available on the european Corrado Storm, golf vr6 highline/ highline syncro
    5 lug on highline




    4 Lug version



    rare embossed version




    BBS Bugatti....This is a multipiece wheel, but also came stock on vr6's but not in the multi piece version





    4 Lug Version



    Stock Bugatti painted gold




    EB514 Bugatti




    BBS OEM Montreal II's




    BBS RG




    BBS RKII



    BBS RT




    BBS GT2



    BBS VZ



    BBS "RV 459" A.K.A. 1H0601025AB



    17x7 BBS RB020



    I will be updated as i can, for all wheels...i have many many more and please feel free to correct me or help out if you can

    since I have seen these questions asked a few times, I will add some answers to the FAQ
    as of October 07, these are places where you can get BBS related stuff:

    Center caps and such

    RTH has the valve caps, they have badges too but not sure if they are the ones you want.
    http://cgi.ebay.com/BBS-Ventil...wItem

    try BFI for the caps.

    http://store.blackforestindust....html

    or PMS

    http://www.purems.com/products/product.php/II=


    places to buy lips:
    http://www.rkimporting.com/accessories.htm has Schmidt lips for 135 each. bolts for RS and RM's around $190, cone or hex flat caps for $225 see price sheet here

    http://www.tunershop.com sells Schmidt lips for 529$ total. that INCLUDES shipping. this is the best price I have found, and it is where I ordered mine from, it took about two weeks or so from the UK and these lips are absolutely GORGEOUS.
    tunershop also sells ATS cups brand new for about 250$ a pop.

    http://www.blackforestindustries.com sells gold bolts for $1.35e. image lips $159e. or about $658 for a set shipped.

    http://www.imagewheels.co.uk charges 760$ for four lips shipped.

    http://justmatz.co.uk has alloys lips for about 640$ for a set, plus 90$ shipping. they also sell STAINLESS lips for 226$ each, which they say are heavier but are super strong. they also sell centers, bolts, rebuilt wheels and so on. I dont know who makes the lips they sell.

    Warning about buying centers. when you buy flatcaps and whatnot, they do NOT come with the metal trim ring. you will have to locate those separately.

    Valve Stems:
    First: BBS valve stems are .300 inches in diameter. Schmidt lips have the correct hole for these. considered the "small sized hole". I believe you can get Image or Kodiak lips with either size hole. .300 or .476(I think)
    Anyway.
    I really wanted a set of flushmount valve stems and I shopped all over for them. I tried to order from JCwhitney, but ended up buying a set on ebay. I have to say that the seriously low quality of these things has turned me off to them. the crappy chrome finish on them detracts from the look of the wheel so bad that I would rather have a rusty old stump sticking out than these ugly flushmounts. to make matters worse, they were too large, would require drilling to fit in the rim, and they were so wide that the top would need to be grinded down to fit in the recess of the lip.
    so I went to the Harley dealership and picked up a set of low profile screw in valve stems. they aren't all that pretty, but they will work. they shouldn't look too bad when I have a nice valve cover over them too.
    These cost 7$ a piece, but I am sure you could track them down for less money some place else.


    Tools:
    it seems some people have trouble finding an 8mm 12 point socket. Have you tried Sears? that is where I got mine. they have an entire wall display filled with individual sockets of all sorts of sizes, points, and so on. I checked home depot and was able to find them there as well. you could also call up your local snap-on guy and have them deliver one right to your house.
    there was mention of a fiberglass lined socket wrench that was supposed to be safe on the bolts finish, but they are not made anymore. but if if you take your time and keep your ratchet straight you should not damage your finish.

    torque specs

    BBS RM bolt torque is 12-15 lb/ft
    BBS RS bolt torque is 144in/lbs /12ft/lbs.

    The following pertains to RM012s only. When widening:
    6.5" = ET 33
    7" = ET 26.7
    7.5" = ET 20.3
    8" = ET 14
    8.5"= ET 7.6
    9" = ET 1.3
    9.5" = ET -5.1
    10" = ET -11.5

    BBS of America, Inc.
    5320 BBS Drive,
    Braselton, Georgia 30517
    USA
    Tel.: 770.967.9848
    Fax: 770.967.9866
    E-Mail: marketing@bbs-usa.com

    North American Wide Lip Source:
    Kodiak Motorsports
    #1 - 30455 Progressive Way
    Abbotsford, BC Canada
    V2T 6W3
    Tel: 877.856.7311, Pacific time (ask for Daryle or Carol)
    E-mail: sales@kodiakmotorsports.com
    Web: http://www.kodiakmotorsports.com

    United Kingdom Wide Lip Source:
    Image Wheels International, Ltd.
    3 Fountain Lane, Tipton
    West Midlands
    DY4 9HA
    Great Britain
    Tel: (UK) 0121 522 2442
    Fax: (UK) 0121 520 9311
    E-mail: imagewheels@btinternet.com
    Web: http://www.imagewheels.co.uk


    General Pricing:
    For a 15" diameter 2" lip: $78 USD (Image's price of 66 pounds is about $110 USD each, not including shipping from Europe). Shipping is where the big savings should be with Kodiak. Without shipping charges, (4) 2" lips are $312. On average, the total has been about $359 for (4) 2" lips, and a tube of sealant, shipped.


    Lip Size to New Wheel Width:
    0.5" lip = 6.5" overall (standard BBS RMs)
    1.5" lip = 7.5" width total
    2.0" lip = 8.0" width total
    3.0" lip = 9.0" width total


    Preferred Tire Sizes:
    Optimum/preferred 15" tire size for 8" wide wheel: 195/45-15 (front/rear)
    Optimum/preferred 15" tire size for 9" wide wheel: 205/40-15 or 215/40-15(rears)
    You'll have to go overseas for the rears, though in a 9" size. Not available in the US for some reason even though most tire manufacturers sell them, just not here. Pretty much your only option in the U.S. is 195/45-15 or 195/50-15 front and 205/50-15 rear.

    Toyo makes the Proxes T1-S in the 215-45 that is readily available in the States.
    You can get Toyo Proxes T1S in 195/45-15 for about $125 ea. from these two places:
    http://www.treaddepot.com
    http://www.etires.com

    195/45-15 Kuhmos (not a great performing tire) have been spotted selling for $50 ea.
    http://www.tirerack.com carries: Kumho ECSTA Supra 712 for $71 each in 195/45-15

    Discount Tire Direct (http://www.tires.com) carries no tire in 195/45-15


    Tire Heights:
    215/45/15 will be 22.6" tall in total
    205/40/15 will be 21.4" tall in total
    205/50/15 will be 23.1" tall in total
    195/45/15 will be 21.9" tall in total
    195/50/15 will be 22.7" tall in total


    Wheel Lip Manufacturing Process:
    The parts that we make are made from 6061 aluminum and go through many steps to ensure their strength. Pot holes will only hurt your wheels if you do not have enough air pressure. Even if you had steel wheels they would bend if they came in contact with the ground. Kodiak parts are available in .500" increments from 1 inch to 10 inches wide. The width of the rim shell doest really have any effect on the strength until you get into very high loading vehicles. Kodiak rim shells are spun formed. It makes the part the strongest it can be by forging the sheet into the wheel shape. The rims are made from 6061-T6 aluminum and are .190" thick. They are machined on a vertical CNC and then polished to a mirror finish. Kodiak has made a variety of different profiles in the past but they now do almost everything using the J (ISO) contour. This contour is the most common and makes it easy for tire mounters.


    Valve Hole Size:
    Kodiak drilled some lips with the standard wheel size then thought it might be better to leave the hole the same size as stock BBS. If you want to go to a standard size just run a drill bit through the hole. It is easy and anyone can do it. The standard size for a valve hole is .431" so a 7/16" drill bit (.437") will work just fine.


    Bolt Pattern & Bolts:
    Both the BBS RSs and the RMs have 30 bolts per wheel, and they are the same bolt pattern. 17s should have 35 bolt holes. Torque bolts in a crossing star pattern, just like you would do with lug bolts.

    BBS RM bolt torque is 12-15 lb/ft
    BBS RS bolt torque is 12 lb/ft
    NOTE: Some individuals have suggested that 18 lb/ft is a more reasonable torque setting when re-using old bolts on BBS 3-piece wheels. Use these numbers at YOUR OWN RISK.


    Disassembly and Assembly information:
    Taking apart your wheels is a piece of cake. It only requires common sense and a little patience. Kodiak suggests to it's racing customers that they take apart and inspect there wheels every year. [This is probably not needed on a street tire.] We have yet to have anyone that hasn't been able to do it on their own. It is important to make sure that the parts are clean when they are reassembled.

    Use a 12pt 8mm socket on the bolts and heat the lips up with a heat gun for 5-10 minutes before going at them with a rubber mallet. It should take no longer than 2 hours to have them all apart.

    Use a decent 3/8 drive torque wrench and use a crossover method for tighening. After you torque the wheels put a bead of silicone adheasive over the seal on smooth it out. If you are really worried about leaking just put a very thin coat on one day and follow it up with a second coat 24 hours later.


    Sealing Wheel Shells:
    1. Clean the mating surfaces with laquer thinner and let dry.
    2. Bolt the two shells together "DRY" and torque to spec.
    3. Lay thin bead of silicone in the crack between the mating surfaces and smooth. Let it dry overnight.
    4. Re-apply a bead over the first and smooth out to about a 1.0" bead width and smooth.

    If you follow this procedure your wheels will never leak. The reason you don't want silicone between the halves is because all silicone shrinks as it cures. As is shrinks the pressure between the shells changes and your torque changes. BBS use a different system. I wouldnt worry about how the silicone looks. Once you put a tire on you cant see it anyway. The last thing to want is to be driving down the road and get a flat because you didnt use enough sealant. Kodiak suggests to all of their customers that they recheck the torque after you run the wheels for the first time. Just make a few turns each way and quickly recheck (just check don't tighten more).

    One recommended product for sealing wheel halves is called Toyota Seal 10* (can't remember the last number) also known as FIPG or as it sounds "Fipige." It is only available at the dealer, 3 oz. cost near 15 dollars, no silicone in it, I believe, but it will seal almost unsealable things. Generally, and good quality RTV silicone sealant will work perfectly, though. Dow Corning 832 Multi Surface Adhesive Sealant was also recommended. Kinesis Motorsports also recommends a sealant called, Shin-Etsu Silicone (1 Component RTV). This is available from Kinesis Motorsports directly.


    Other Important Multi-piece BBS Information:
    BBS wheel assembly information:
    http://www.gtiworld.fsnet.co.uk

    Euro source for BBS parts (tapered and flush centercaps, gold and chrome bolts, etc.):
    http://www.supergolfs.co.uk

    The chrome BBS cap inserts are 70 mm cap inserts from either the LM, RK or RKII. From the Wheel & Tire Forum, Eric @ tirerack.com posted all the various BBS center cap combos.
    BBS Center Cap Thread

    On new bolts from BBS: quoted $50 a wheel from BBS of America, to re-assemble the wheel with new titanium fasteners. They will NOT sell you bolts directly for liability reasons, but they will do them up for you themselves for a fee. This also includes new seals between the rim halves, too. It is unknown if they will assemble wheel pieces that they did not manufacture.

    Flushfit valve stems:
    http://www.demon-tweeks.co.uk

    Titanium, stainless and steel bolts for 2-3pc wheels:
    http://www.titanium-touch.de

  2. #22
    Letnan Dua
    Location
    jakarta - indonesia
    Posts
    1,425
    Power
    M-Store Point
    0
    Online
    15 Hrs 54 Mins 37 Secs
    list BBS RS

    Part Number Width x Diameter Offset Lug Pattern Lug Number Centerbore Make Model
    RS068 7 x 15 0.0 98.00 4 58.5 Maserati Biturbo VA
    RS069 8 x 15 12.0 98.00 4 58.5 Maserati Biturbo HA
    RS172 7 x 15 38.0 98.00 4 58.1 Lancia Delta 4WD
    RS202 7 x 15 25.0 98.00 4 58.1 Lancia Delta Integrale
    RS229 7 x 16 24.0 98.00 4 58.1 Fiat,Lancia
    RS230 7 1/2 x 16 18.0 98.00 4 58.1 Fiat,Lancia
    RS249 7 x 15 30.0 98.00 5 58.1 Alfa 164
    RS001 7 x 15 25.0 100.00 4 57.0 BMW,VW 3/1,3/R,Golf II
    RS002 8 x 15 12.0 100.00 4 57.0 BMW 3/1
    RS003 7 x 16 25.0 100.00 4 57.0 BMW,VW 3/1,3/R,Golf II
    RS004 8 x 16 12.0 100.00 4 57.0 BMW 3/1
    RS016 6 1/2 x 15 32.0 100.00 4 57.0 VW Golf,Scirocco,Passat
    RS070 7 x 15 16.0 100.00 4 57.0 BMW 3/1,3/R
    RS071 8 x 15 18.0 100.00 4 57.0 BMW 3/1,3/R HA
    RS072 9 x 15 3.0 100.00 4 57.0 BMW 3/1 HA
    RS073 8 x 16 15.0 100.00 4 57.0 BMW 3/1
    RS074 9 x 16 0.0 100.00 4 57.0 BMW 3/1
    RS096 7 x 15 38.0 100.00 4 61.0 Renault Alpine GTA
    RS097 8 1/2 x 15 18.0 100.00 4 61.0 Renault Alpine
    RS099 8 x 15 12.0 100.00 4 57.0 Opel GT VA
    RS100 9 x 15 3.0 100.00 4 57.0 Opel GT HA
    RS114 11 x 15 -35.0 100.00 4 57.0 BMW 3,3/1
    RS116 8 x 15 3.0 100.00 4 60.0 Renault Alpine GT VA
    RS117 9 x 15 3.0 100.00 4 60.0 Renault Alpine GT HA
    RS118 11 x 15 15.0 100.00 4 60.0 Renault Alpine GT HA
    RS127 9 x 15 -36.0 100.00 4 57.0 BMW 3,3/1
    RS128 11 x 15 -61.0 100.00 4 57.0 BMW 3,3/1
    RS129 13 x 15 -74.0 100.00 4 57.0 BMW 3,3/1
    RS134 8 x 15 -23.0 100.00 4 56.5 Opel Kadett E
    RS136 11 x 15 -10.0 100.00 4 57.0 Opel GT
    RS138 7 x 15 16.0 100.00 4 56.5 Opel Kadett E
    RS139 9 x 15 3.0 100.00 4 56.5 Opel Kadett E
    RS140 8 x 15 28.0 100.00 4 57.0 Opel Manta B
    RS143 9 1/2 x 15 12.0 100.00 4 60.0 Renault Alpine GT HA
    RS164 9 1/2 x 15 9.0 100.00 4 60.0 Renault Alpine
    RS165 11 x 15 -26.0 100.00 4 60.0 Renault Alpine
    RS166 13 x 15 -48.0 100.00 4 60.0 Renault Alpine
    RS185 8 x 15 3.0 100.00 4 57.0 BMW 3/1
    RS186 13 x 15 -48.0 100.00 4 57.0 BMW 3/1 HA
    RS218 6 x 15 3.0 100.00 4 57.0 Jamaha FJ 1100 (Gespann)
    RS237 8 x 15 -10.0 100.00 4 57.0 VW Golf II
    RS240 6 x 14 40.0 100.00 4 56.0 Honda Accord Concerto CR-X
    RS242 6 x 14 30.0 100.00 4 57.0 Isuzu Toyota Gemeni MR2
    RS315 8 x 17 35.0 100.00 4 56.5 Opel Calibra
    RS319 7 1/2 x 15 32.0 100.00 4 54.0 Mazda 323
    RS354 7 1/2 x 16 28.0 100.00 4 56.0 Honda Civic
    RS715w 7 x 17 35.0 100.00 4 0.0 Hon.Maz.Mit.Opel,Ren.Rover Seat,Tojota,Volvo,VW
    RS269 7 1/2 x 16 28.0 100.00 5 54.1 Toyota Celica,Camry
    RS301 7 1/2 x 17 33.0 100.00 5 57.0 VW Golf/Passat III plus
    RS304 7 1/2 x 15 30.0 100.00 5 54.0 Toyota Carina
    RS332 9 x 15 15.0 100.00 5 57.0 VW Corrado VR6
    RS333 11 1/2 x 15 -52.0 100.00 5 57.0 VW Corrado VR6 HA
    RS086 9 x 15 4.0 108.00 0 71.0 Ferrari 512 VA
    RS087 13 x 15 -47.0 108.00 0 71.0 Ferrari 512 HA
    RS060 7 x 16 35.0 108.00 4 63.5 Ford Sierra,Sierra 4x4
    RS094 8 x 16 36.0 108.00 4 63.5 Ford Sierra,Sierra 4x4
    RS103 7 1/2 x 16 4.0 108.00 4 63.5 Ford Sierra VA
    RS104 9 x 16 11.0 108.00 4 63.5 Ford Sierra HA
    RS121 8 x 15 12.0 108.00 4 57.0 Audi 80Q,90Q
    RS122 9 x 15 3.0 108.00 4 57.0 Audi 80Q,90Q
    RS135 7 x 16 36.0 108.00 4 65.0 Saab 9000
    RS152 7 x 15 25.0 108.00 4 65.0 Saab 9000 bis Bj.8/86
    RS159 7 x 15 25.0 108.00 4 65.0 Saab 9000
    RS181 9 x 15 3.0 108.00 4 63.5 Ford Escort
    RS182 8 x 15 12.0 108.00 4 63.5 Ford Escort
    RS183 13 x 15 -74.0 108.00 4 63.5 Ford Capri HA
    RS187 9 x 15 -36.0 108.00 4 57.0 Audi 80 Q
    RS188 11 x 15 -61.0 108.00 4 57.0 Audi 80 Q HA
    RS192 9 x 15 -36.0 108.00 4 63.5 Ford Capri
    RS193 11 x 15 -61.0 108.00 4 63.5 Ford Capri
    RS194 8 x 15 16.0 108.00 4 57.0 Audi 80,90,Quattro
    RS210 8 x 16 24.0 108.00 4 65.0 Saab 9000
    RS216 7 x 16 22.0 108.00 4 64.0 Ford Mustang
    RS217 8 x 16 22.0 108.00 4 64.0 Ford Mustang
    RS219 9 x 16 9.0 108.00 4 57.0 Audi 80, 90 Typ 89
    RS220 7 x 16 20.0 108.00 4 63.5 Ford Sierra Cosworth
    RS221 8 x 16 20.0 108.00 4 63.5 Ford Sierra Cosworth HA
    RS223 7 x 16 30.0 108.00 4 63.5 Ford Cosworth
    RS227 6 1/2 x 15 32.0 108.00 4 65.0 Saab 9000
    RS228 9 x 16 22.0 108.00 4 57.0 Audi 80,90
    RS288 7 1/2 x 15 32.0 108.00 4 57.0 Audi 80,90,Q Typ 89
    RS314 7 1/2 x 16 33.0 108.00 4 57.0 Audi 80,90
    RS334 7 1/2 x 17 33.0 108.00 4 57.0 Audi 80;90 Typ 89
    RS028 7 x 16 11.0 108.00 5 58.0 Ferrari VA 308,328
    RS029 8 x 16 -2.0 108.00 5 67.0 Ferrari HA 308,328
    RS084 8 x 15 -1.0 108.00 5 58.0 Ferrari 308 VA
    RS085 11 x 15 -39.0 108.00 5 67.0 Ferrari 308 HA
    RS109 9 x 16 30.0 108.00 5 0.0 Ferrari Tetarossa VA
    RS110 12 1/2 x 15 -3.0 108.00 5 0.0 Ferrari Testarossa
    RS111 7 x 16 11.0 108.00 5 65.1 Volvo 740,760
    RS112 7 1/2 x 16 17.0 108.00 5 65.1 Volvo 740,760
    RS119 10 x 16 43.0 108.00 5 71.0 Ferrari Testarossa HA
    RS125 7 x 16 11.0 108.00 5 58.0 Ferrari 328 VA
    RS209 7 x 15 15.0 108.00 5 65.1 Volvo 740
    RS231 7 x 16 52.0 108.00 5 60.0 Renault R 25 Turbo
    RS195 8 x 17 35.0 110.00 5 65.0 Opel Omega,Senator
    RS226 8 x 16 30.0 110.00 5 65.0 Opel Omega,Senator
    RS284 10 x 17 10.0 110.00 5 65.0 Opel Omega
    RS295 8 1/2 x 17 25.0 110.00 5 65.0 Opel Omega
    RS008 7 x 16 24.0 112.00 5 66.5 MB 116,123,124,126,201
    RS009 8 x 16 11.0 112.00 5 66.5 MB 107,116,123,126
    RS023 8 x 16 24.0 112.00 5 66.5 MB 116,123,126,201 HA
    RS058 10 x 16 11.0 112.00 5 66.5 MB 107,123,126 HA
    RS063 9 x 16 11.0 112.00 5 57.0 Audi
    RS064 7 x 15 37.0 112.00 5 57.0 Audi 100,200,100 Q,200 Q
    RS065 8 x 15 24.0 112.00 5 57.0 Audi 100 Q,200 Q,Quattro
    RS077 8 x 16 35.0 112.00 5 66.5 MB 124,201
    RS078 9 x 16 11.0 112.00 5 66.5 MB 107,123,126
    RS079 10 x 16 -2.0 112.00 5 66.5 MB 126
    RS088 9 x 15 6.0 112.00 5 66.5 MB 107,126 VA
    RS089 13 x 15 -58.0 112.00 5 66.5 MB 107,126 HA
    RS093 8 x 15 12.0 112.00 5 66.5 MB 201
    RS098 7 x 16 35.0 112.00 5 66.5 MB 124,201
    RS102 10 x 15 -7.0 112.00 5 66.5 MB 107,116
    RS115 8 x 16 30.0 112.00 5 57.0 Audi 100,200
    RS133 8 x 16 21.0 112.00 5 66.5 MB 107 ab Bj.9/85
    RS142 9 x 16 8.0 112.00 5 66.5 MB 107
    RS168 10 1/2 x 15 -22.0 112.00 5 57.0 Audi 200 Quattro
    RS169 13 x 15 -54.0 112.00 5 57.0 Audi 200 Quattro
    RS173 8 x 16 24.0 112.00 5 63.5 Ford Scorpio
    RS179 7 x 16 35.0 112.00 5 63.5 Ford Scorpio
    RS199 8 x 17 32.0 112.00 5 66.5 MB 124,24V
    RS200 8 1/2 x 17 13.0 112.00 5 66.5 MB 126
    RS203 9 1/2 x 15 -10.0 112.00 5 66.5 MB 126
    RS204 12 1/2 x 15 -60.0 112.00 5 66.5 MB 126
    RS205 9 x 15 -3.0 112.00 5 66.5 MB 126
    RS206 11 x 15 -31.0 112.00 5 66.5 MB 126
    RS236 8 1/2 x 17 30.0 112.00 5 57.0 Audi 200 V8
    RS251 9 x 16 30.0 112.00 5 66.5 MB 124 VA
    RS252 9 x 16 25.0 112.00 5 66.5 MB 124 HA
    RS276 9 1/2 x 17 0.0 112.00 5 66.5 MB 124,126 VA
    RS277 12 x 17 -45.0 112.00 5 66.5 MB 124,126 HA
    RS289 8 1/2 x 18 20.0 112.00 5 66.5 MB 129
    RS290 9 1/2 x 18 18.0 112.00 5 66.5 MB 129 HA
    RS292 10 x 16 30.0 112.00 5 66.5 MB 124
    RS296 8 1/2 x 16 22.0 112.00 5 66.5 MB 129 VA
    RS702w 8 x 17 35.0 112.00 5 0.0 Audi,MB A4,A6,A8;124,E420,202
    RS704w 8 1/2 x 18 22.0 112.00 5 66.5 MB 124,E500,R129,600
    RS705w 10 x 18 20.0 112.00 5 66.5 MB 124,E500,R129,600 HA
    RS710w 8 1/2 x 18 32.0 112.00 5 0.0 Audi,MB A8;124,E420,202,140
    RS711w 10 x 18 40.0 112.00 5 66.5 MB 140
    RS095 8 x 16 11.0 114.30 4 60.2 Toyota Celica,Supra
    RS155 7 x 15 30.0 114.30 4 71.6 Saab 900
    RS207 6 1/2 x 15 34.0 114.30 4 64.1 Honda Legent
    RS239 7 x 16 37.0 114.30 4 66.0 Nissan 240 SX
    RS241 6 x 14 35.0 114.30 4 66.0 Nissan Bluebird,Silvia
    RS280 7 1/2 x 16 35.0 114.30 4 64.1 Honda Accord 90
    RS291 8 x 16 30.0 114.30 4 66.0 Nissan 200SX
    RS297 7 x 15 40.0 114.30 4 64.1 Honda Accord 90
    RS303 7 x 16 40.0 114.30 4 64.1 Honda Accord 90
    RS326 7 1/2 x 16 35.0 114.30 4 66.0 Nissan 200 SX,Primera
    RS716w 7 x 17 40.0 114.30 4 0.0 Hon.Hyn.Mit.Nissan,Rover
    RS214 7 x 15 38.0 114.30 5 59.6 Ford Probe
    RS215 7 x 16 38.0 114.30 5 59.6 Ford Probe
    RS238 6 1/2 x 15 34.0 114.30 5 66.0 Nissan Maxima
    RS250 8 1/2 x 16 25.0 114.30 5 60.0 Toyota Supra
    RS254 8 1/2 x 17 28.0 114.30 5 60.0 Toyota Supra
    RS268 7 1/2 x 16 30.0 114.30 5 59.5 Mazda 626
    RS274 9 x 17 20.0 114.30 5 60.0 Toyota Supra VA
    RS275 10 x 17 7.0 114.30 5 60.0 Toyota Supra HA
    RS281 7 1/2 x 16 34.0 114.30 5 60.1 Toyota Lexus 400
    RS282 7 x 16 35.0 114.30 5 66.0 Nissan Infinity Q 45
    RS298 7 1/2 x 15 32.0 114.30 5 66.0 Nissan Infinity Q 45
    RS305 7 1/2 x 15 30.0 114.30 5 59.6 Mazda 626 MR2 90
    RS306 8 x 16 43.0 114.30 5 70.0 Honda NSX VA
    RS307 9 x 17 42.0 114.30 5 64.0 Honda NSX HA
    RS325 7 1/2 x 16 30.0 114.30 5 59.6 Ford,Mazda Probe,626/RX 7
    RS331 8 x 17 35.0 114.30 5 60.0 Toyota Lexus 400
    RS335 8 1/2 x 17 32.0 114.30 5 66.0 Nissan 300 ZX
    RS712w 8 x 17 38.0 114.30 5 0.0 Lexus,Toyota,Nissan LS/SC400,Supra,Inf.Q45
    RS717w 8 1/2 x 18 40.0 114.30 5 0.0 Mazda,Nissan,Toyota
    RS718w 10 x 18 45.0 114.30 5 0.0 Mazda,Nissan,Toyota
    RS005 7 x 16 11.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7,7/1
    RS021 8 x 16 11.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7,7/1
    RS022 9 x 16 24.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7/1,M3
    RS061 8 x 16 20.0 120.00 5 72.5 BMW M3,M5,5/1,6Cs,7,7/1
    RS066 10 x 16 20.0 120.00 5 72.5 BMW 7,7/1 HA
    RS076 10 x 16 11.0 120.00 5 72.5 BMW 6CS/1,7
    RS141 9 x 16 36.0 120.00 5 69.5 Opel Monza
    RS147 10 1/2 x 15 -47.0 120.00 5 72.5 BMW M1 VA
    RS148 13 x 15 -72.0 120.00 5 72.5 BMW M1 M635CSi HA
    RS149 10 1/2 x 15 -22.0 120.00 5 72.5 BMW M635CSi VA
    RS153 9 1/2 x 15 -15.0 120.00 5 72.5 BMW 635CSi
    RS154 11 x 15 -72.0 120.00 5 72.5 BMW 635CSi
    RS197 9 1/2 x 17 13.0 120.00 5 72.5 BMW 5/H,7/1 HA
    RS198 8 1/2 x 17 13.0 120.00 5 72.5 BMW 7/1
    RS211 8 x 16 11.0 120.00 5 72.5 BMW 5/H,7/1
    RS212 8 1/2 x 17 13.0 120.00 5 0.0 BMW 5/H,7/1
    RS285 8 1/2 x 18 13.0 120.00 5 72.5 BMW 5/H,7/1,evtl.8
    RS286 9 1/2 x 18 13.0 120.00 5 72.5 BMW 5/H,7/1,7/G,evtl.8 HA
    RS302 8 x 17 40.0 120.00 5 72.5 BMW 3/C
    RS700w 8 1/2 x 18 22.0 120.00 5 0.0 BMW 5/neu,7/G
    RS701w 10 x 18 25.0 120.00 5 0.0 BMW 5/neu,7/G HA
    RS703w 8 x 17 40.0 120.00 5 72.5 BMW 3/C,3/B,M3
    RS708w 9 x 20 22.0 120.00 5 0.0 BMW 5/D,7/G
    RS709w 10 x 20 25.0 120.00 5 0.0 BMW 5/D,7/G HA
    RS713w 8 x 17 15.0 120.00 5 0.0 BMW 5/H,7/1,5/D
    RS714w 8 1/2 x 18 38.0 120.00 5 72.5 BMW 3/C M3
    RS020 7 1/2 x 16 30.0 120.65 5 73.9 Jaguar XJ,XJS,XJ40
    RS025 9 x 16 36.0 120.65 5 70.3 Chevrolet Corvette VA
    RS026 10 x 16 36.0 120.65 5 70.3 Chevrolet Corvette HA
    RS027 8 1/2 x 16 30.0 120.65 5 73.9 Jaguar HA XJ,XJS,XJ40
    RS091 8 1/2 x 15 3.0 120.65 5 73.9 Jaguar XJ,XJS
    RS092 11 x 15 -66.0 120.65 5 73.9 Jaguar XJ,XJS
    RS170 11 x 15 -31.0 120.65 5 73.9 Jaguar XJ,XJS
    RS171 14 x 15 -54.0 120.65 5 73.9 Jaguar XJ,XJS
    RS177 8 1/2 x 16 46.0 120.65 5 70.3 Chevrolet Corvette
    RS178 9 1/2 x 17 56.0 120.65 5 70.3 Chevrolet Corvette
    RS190 9 x 16 -2.0 120.65 5 73.9 Jaguar
    RS191 10 x 16 -2.0 120.65 5 73.9 Jaguar HA
    RS719w 8 1/2 x 18 28.0 120.65 5 73.8 Jaguar XJ,XJ-R
    RS123 8 x 16 18.0 130.00 4 65.0 Maserati Merak HA
    RS124 10 x 16 30.0 130.00 4 65.0 Maserati Merak HA
    RS012 7 x 16 23.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS013 8 x 16 11.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS014 9 x 16 11.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS017 8 x 16 62.0 130.00 5 71.6 Porsche 928 VA bis Bj.8/85
    RS018 9 x 16 36.0 130.00 5 71.6 Porsche 928 HA
    RS055 9 x 16 15.0 130.00 5 71.6 Porsche 911,930,944
    RS056 8 x 16 28.0 130.00 5 71.6 Porsche 911,930,944
    RS057 10 x 16 23.0 130.00 5 71.6 Porsche 911,930,944
    RS059 10 x 16 11.0 130.00 5 71.6 Porsche 928 HA
    RS080 9 x 15 28.0 130.00 5 71.6 Porsche 911,930,944
    RS081 11 x 15 28.0 130.00 5 71.6 Porsche 911,930,944
    RS082 9 x 15 2.0 130.00 5 71.6 Porsche 911,930,944
    RS083 13 x 15 -49.0 130.00 5 71.6 Porsche 911,930,944
    RS105 9 1/2 x 15 42.0 130.00 5 71.6 Istera Imperator VA
    RS106 12 1/2 x 15 4.0 130.00 5 71.6 Istera Imperator HA
    RS113 10 x 16 -15.0 130.00 5 71.6 Porsche 928 HA
    RS120 11 1/2 x 15 -34.0 130.00 5 71.6 Porsche 911,930,944
    RS126 14 x 15 -54.0 130.00 5 71.6 Porsche 911,930
    RS130 10 1/2 x 15 -22.0 130.00 5 71.6 Porsche 911,930,944
    RS131 8 1/2 x 16 56.0 130.00 5 71.6 Porsche 928S VA
    RS132 9 1/2 x 16 59.0 130.00 5 71.6 Porsche 928 S
    RS144 11 x 15 -30.0 130.00 5 71.6 Porsche 911,944
    RS157 7 x 16 49.0 130.00 5 71.6 Porsche 924 S,964 VA
    RS161 12 1/2 x 15 5.0 130.00 5 71.6 Porsche 928 S HA
    RS184 13 x 15 -79.0 130.00 5 71.6 Porsche 911 HA
    RS201 10 x 16 49.0 130.00 5 71.6 Porsche 944 HA
    RS208 10 x 16 -30.0 130.00 5 71.6 Porsche 928
    RS255 8 1/2 x 16 56.0 130.00 5 71.6 Porsche 928 S VA
    RS256 9 1/2 x 16 43.0 130.00 5 71.6 Porsche 928 S HA
    RS257 8 x 17 49.0 130.00 5 71.6 Porsche 964 VA
    RS258 9 1/2 x 17 52.0 130.00 5 71.6 Porsche 964 HA
    RS270 8 1/2 x 17 13.0 130.00 5 71.6 Porsche 964
    RS271 10 x 17 0.0 130.00 5 71.6 Porsche 964 HA
    RS311 10 x 17 16.0 130.00 5 71.6 Porsche C62 VA
    RS312 13 x 17 -22.0 130.00 5 71.6 Porsche C62 HA
    RS706w 8 1/2 x 18 45.0 130.00 5 71.6 Porsche 993,Turbo
    RS707w 10 x 18 50.0 130.00 5 71.6 Porsche 993,Turbo HA

  3. #23
    Letnan Dua
    Location
    jakarta - indonesia
    Posts
    1,425
    Power
    M-Store Point
    0
    Online
    15 Hrs 54 Mins 37 Secs
    Part Number Width x Diameter Offset Lug Pattern Lug Number Centerbore Make Model

    RS001 7 x 15 25.0 100.00 4 57.0 BMW,VW 3/1,3/R,Golf II
    RS002 8 x 15 12.0 100.00 4 57.0 BMW 3/1
    RS003 7 x 16 25.0 100.00 4 57.0 BMW,VW 3/1,3/R,Golf II
    RS004 8 x 16 12.0 100.00 4 57.0 BMW 3/1
    RS005 7 x 16 11.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7,7/1
    RS008 7 x 16 24.0 112.00 5 66.5 MB 116,123,124,126,201
    RS009 8 x 16 11.0 112.00 5 66.5 MB 107,116,123,126
    RS012 7 x 16 23.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS013 8 x 16 11.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS014 9 x 16 11.0 130.00 5 71.6 Porsche 911,930,944 bis 8/86
    RS016 6 1/2 x 15 32.0 100.00 4 57.0 VW Golf,Scirocco,Passat
    RS017 8 x 16 62.0 130.00 5 71.6 Porsche 928 VA bis Bj.8/85
    RS018 9 x 16 36.0 130.00 5 71.6 Porsche 928 HA
    RS020 7 1/2 x 16 30.0 120.65 5 73.9 Jaguar XJ,XJS,XJ40
    RS021 8 x 16 11.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7,7/1
    RS022 9 x 16 24.0 120.00 5 72.5 BMW 5/1,5/H,6Cs/1,7/1,M3
    RS023 8 x 16 24.0 112.00 5 66.5 MB 116,123,126,201 HA
    RS025 9 x 16 36.0 120.65 5 70.3 Chevrolet Corvette VA
    RS026 10 x 16 36.0 120.65 5 70.3 Chevrolet Corvette HA
    RS027 8 1/2 x 16 30.0 120.65 5 73.9 Jaguar HA XJ,XJS,XJ40
    RS028 7 x 16 11.0 108.00 5 58.0 Ferrari VA 308,328
    RS029 8 x 16 -2.0 108.00 5 67.0 Ferrari HA 308,328
    RS055 9 x 16 15.0 130.00 5 71.6 Porsche 911,930,944
    RS056 8 x 16 28.0 130.00 5 71.6 Porsche 911,930,944
    RS057 10 x 16 23.0 130.00 5 71.6 Porsche 911,930,944
    RS058 10 x 16 11.0 112.00 5 66.5 MB 107,123,126 HA
    RS059 10 x 16 11.0 130.00 5 71.6 Porsche 928 HA
    RS060 7 x 16 35.0 108.00 4 63.5 Ford Sierra,Sierra 4x4
    RS061 8 x 16 20.0 120.00 5 72.5 BMW M3,M5,5/1,6Cs,7,7/1
    RS063 9 x 16 11.0 112.00 5 57.0 Audi
    RS064 7 x 15 37.0 112.00 5 57.0 Audi 100,200,100 Q,200 Q
    RS065 8 x 15 24.0 112.00 5 57.0 Audi 100 Q,200 Q,Quattro
    RS066 10 x 16 20.0 120.00 5 72.5 BMW 7,7/1 HA
    RS068 7 x 15 0.0 98.00 4 58.5 Maserati Biturbo VA
    RS069 8 x 15 12.0 98.00 4 58.5 Maserati Biturbo HA
    RS070 7 x 15 16.0 100.00 4 57.0 BMW 3/1,3/R
    RS071 8 x 15 18.0 100.00 4 57.0 BMW 3/1,3/R HA
    RS072 9 x 15 3.0 100.00 4 57.0 BMW 3/1 HA
    RS073 8 x 16 15.0 100.00 4 57.0 BMW 3/1
    RS074 9 x 16 0.0 100.00 4 57.0 BMW 3/1
    RS076 10 x 16 11.0 120.00 5 72.5 BMW 6CS/1,7
    RS077 8 x 16 35.0 112.00 5 66.5 MB 124,201
    RS078 9 x 16 11.0 112.00 5 66.5 MB 107,123,126
    RS079 10 x 16 -2.0 112.00 5 66.5 MB 126
    RS080 9 x 15 28.0 130.00 5 71.6 Porsche 911,930,944
    RS081 11 x 15 28.0 130.00 5 71.6 Porsche 911,930,944
    RS082 9 x 15 2.0 130.00 5 71.6 Porsche 911,930,944
    RS083 13 x 15 -49.0 130.00 5 71.6 Porsche 911,930,944
    RS084 8 x 15 -1.0 108.00 5 58.0 Ferrari 308 VA
    RS085 11 x 15 -39.0 108.00 5 67.0 Ferrari 308 HA
    RS086 9 x 15 4.0 108.00 0 71.0 Ferrari 512 VA
    RS087 13 x 15 -47.0 108.00 0 71.0 Ferrari 512 HA
    RS088 9 x 15 6.0 112.00 5 66.5 MB 107,126 VA
    RS089 13 x 15 -58.0 112.00 5 66.5 MB 107,126 HA
    RS091 8 1/2 x 15 3.0 120.65 5 73.9 Jaguar XJ,XJS
    RS092 11 x 15 -66.0 120.65 5 73.9 Jaguar XJ,XJS
    RS093 8 x 15 12.0 112.00 5 66.5 MB 201
    RS094 8 x 16 36.0 108.00 4 63.5 Ford Sierra,Sierra 4x4
    RS095 8 x 16 11.0 114.30 4 60.2 Toyota Celica,Supra
    RS096 7 x 15 38.0 100.00 4 61.0 Renault Alpine GTA
    RS097 8 1/2 x 15 18.0 100.00 4 61.0 Renault Alpine
    RS098 7 x 16 35.0 112.00 5 66.5 MB 124,201
    RS099 8 x 15 12.0 100.00 4 57.0 Opel GT VA
    RS100 9 x 15 3.0 100.00 4 57.0 Opel GT HA
    RS102 10 x 15 -7.0 112.00 5 66.5 MB 107,116
    RS103 7 1/2 x 16 4.0 108.00 4 63.5 Ford Sierra VA
    RS104 9 x 16 11.0 108.00 4 63.5 Ford Sierra HA
    RS105 9 1/2 x 15 42.0 130.00 5 71.6 Istera Imperator VA
    RS106 12 1/2 x 15 4.0 130.00 5 71.6 Istera Imperator HA
    RS109 9 x 16 30.0 108.00 5 0.0 Ferrari Tetarossa VA
    RS110 12 1/2 x 15 -3.0 108.00 5 0.0 Ferrari Testarossa
    RS111 7 x 16 11.0 108.00 5 65.1 Volvo 740,760
    RS112 7 1/2 x 16 17.0 108.00 5 65.1 Volvo 740,760
    RS113 10 x 16 -15.0 130.00 5 71.6 Porsche 928 HA
    RS114 11 x 15 -35.0 100.00 4 57.0 BMW 3,3/1
    RS115 8 x 16 30.0 112.00 5 57.0 Audi 100,200
    RS116 8 x 15 3.0 100.00 4 60.0 Renault Alpine GT VA
    RS117 9 x 15 3.0 100.00 4 60.0 Renault Alpine GT HA
    RS118 11 x 15 15.0 100.00 4 60.0 Renault Alpine GT HA
    RS119 10 x 16 43.0 108.00 5 71.0 Ferrari Testarossa HA
    RS120 11 1/2 x 15 -34.0 130.00 5 71.6 Porsche 911,930,944
    RS121 8 x 15 12.0 108.00 4 57.0 Audi 80Q,90Q
    RS122 9 x 15 3.0 108.00 4 57.0 Audi 80Q,90Q
    RS123 8 x 16 18.0 130.00 4 65.0 Maserati Merak HA
    RS124 10 x 16 30.0 130.00 4 65.0 Maserati Merak HA
    RS125 7 x 16 11.0 108.00 5 58.0 Ferrari 328 VA
    RS126 14 x 15 -54.0 130.00 5 71.6 Porsche 911,930
    RS127 9 x 15 -36.0 100.00 4 57.0 BMW 3,3/1
    RS128 11 x 15 -61.0 100.00 4 57.0 BMW 3,3/1
    RS129 13 x 15 -74.0 100.00 4 57.0 BMW 3,3/1
    RS130 10 1/2 x 15 -22.0 130.00 5 71.6 Porsche 911,930,944
    RS131 8 1/2 x 16 56.0 130.00 5 71.6 Porsche 928S VA
    RS132 9 1/2 x 16 59.0 130.00 5 71.6 Porsche 928 S
    RS133 8 x 16 21.0 112.00 5 66.5 MB 107 ab Bj.9/85
    RS134 8 x 15 -23.0 100.00 4 56.5 Opel Kadett E
    RS135 7 x 16 36.0 108.00 4 65.0 Saab 9000
    RS136 11 x 15 -10.0 100.00 4 57.0 Opel GT
    RS138 7 x 15 16.0 100.00 4 56.5 Opel Kadett E
    RS139 9 x 15 3.0 100.00 4 56.5 Opel Kadett E
    RS140 8 x 15 28.0 100.00 4 57.0 Opel Manta B
    RS141 9 x 16 36.0 120.00 5 69.5 Opel Monza
    RS142 9 x 16 8.0 112.00 5 66.5 MB 107
    RS143 9 1/2 x 15 12.0 100.00 4 60.0 Renault Alpine GT HA
    RS144 11 x 15 -30.0 130.00 5 71.6 Porsche 911,944
    RS147 10 1/2 x 15 -47.0 120.00 5 72.5 BMW M1 VA
    RS148 13 x 15 -72.0 120.00 5 72.5 BMW M1 M635CSi HA
    RS149 10 1/2 x 15 -22.0 120.00 5 72.5 BMW M635CSi VA
    RS152 7 x 15 25.0 108.00 4 65.0 Saab 9000 bis Bj.8/86
    RS153 9 1/2 x 15 -15.0 120.00 5 72.5 BMW 635CSi
    RS154 11 x 15 -72.0 120.00 5 72.5 BMW 635CSi
    RS155 7 x 15 30.0 114.30 4 71.6 Saab 900
    RS157 7 x 16 49.0 130.00 5 71.6 Porsche 924 S,964 VA
    RS159 7 x 15 25.0 108.00 4 65.0 Saab 9000
    RS161 12 1/2 x 15 5.0 130.00 5 71.6 Porsche 928 S HA
    RS164 9 1/2 x 15 9.0 100.00 4 60.0 Renault Alpine
    RS165 11 x 15 -26.0 100.00 4 60.0 Renault Alpine
    RS166 13 x 15 -48.0 100.00 4 60.0 Renault Alpine
    RS168 10 1/2 x 15 -22.0 112.00 5 57.0 Audi 200 Quattro
    RS169 13 x 15 -54.0 112.00 5 57.0 Audi 200 Quattro
    RS170 11 x 15 -31.0 120.65 5 73.9 Jaguar XJ,XJS
    RS171 14 x 15 -54.0 120.65 5 73.9 Jaguar XJ,XJS
    RS172 7 x 15 38.0 98.00 4 58.1 Lancia Delta 4WD
    RS173 8 x 16 24.0 112.00 5 63.5 Ford Scorpio
    RS177 8 1/2 x 16 46.0 120.65 5 70.3 Chevrolet Corvette
    RS178 9 1/2 x 17 56.0 120.65 5 70.3 Chevrolet Corvette
    RS179 7 x 16 35.0 112.00 5 63.5 Ford Scorpio
    RS181 9 x 15 3.0 108.00 4 63.5 Ford Escort
    RS182 8 x 15 12.0 108.00 4 63.5 Ford Escort
    RS183 13 x 15 -74.0 108.00 4 63.5 Ford Capri HA
    RS184 13 x 15 -79.0 130.00 5 71.6 Porsche 911 HA
    RS185 8 x 15 3.0 100.00 4 57.0 BMW 3/1
    RS186 13 x 15 -48.0 100.00 4 57.0 BMW 3/1 HA
    RS187 9 x 15 -36.0 108.00 4 57.0 Audi 80 Q
    RS188 11 x 15 -61.0 108.00 4 57.0 Audi 80 Q HA
    RS190 9 x 16 -2.0 120.65 5 73.9 Jaguar
    RS191 10 x 16 -2.0 120.65 5 73.9 Jaguar HA
    RS192 9 x 15 -36.0 108.00 4 63.5 Ford Capri
    RS193 11 x 15 -61.0 108.00 4 63.5 Ford Capri
    RS194 8 x 15 16.0 108.00 4 57.0 Audi 80,90,Quattro
    RS195 8 x 17 35.0 110.00 5 65.0 Opel Omega,Senator
    RS197 9 1/2 x 17 13.0 120.00 5 72.5 BMW 5/H,7/1 HA
    RS198 8 1/2 x 17 13.0 120.00 5 72.5 BMW 7/1
    RS199 8 x 17 32.0 112.00 5 66.5 MB 124,24V
    RS200 8 1/2 x 17 13.0 112.00 5 66.5 MB 126
    RS201 10 x 16 49.0 130.00 5 71.6 Porsche 944 HA
    RS202 7 x 15 25.0 98.00 4 58.1 Lancia Delta Integrale
    RS203 9 1/2 x 15 -10.0 112.00 5 66.5 MB 126
    RS204 12 1/2 x 15 -60.0 112.00 5 66.5 MB 126
    RS205 9 x 15 -3.0 112.00 5 66.5 MB 126
    RS206 11 x 15 -31.0 112.00 5 66.5 MB 126
    RS207 6 1/2 x 15 34.0 114.30 4 64.1 Honda Legent
    RS208 10 x 16 -30.0 130.00 5 71.6 Porsche 928
    RS209 7 x 15 15.0 108.00 5 65.1 Volvo 740
    RS210 8 x 16 24.0 108.00 4 65.0 Saab 9000
    RS211 8 x 16 11.0 120.00 5 72.5 BMW 5/H,7/1
    RS212 8 1/2 x 17 13.0 120.00 5 0.0 BMW 5/H,7/1
    RS214 7 x 15 38.0 114.30 5 59.6 Ford Probe
    RS215 7 x 16 38.0 114.30 5 59.6 Ford Probe
    RS216 7 x 16 22.0 108.00 4 64.0 Ford Mustang
    RS217 8 x 16 22.0 108.00 4 64.0 Ford Mustang
    RS218 6 x 15 3.0 100.00 4 57.0 Jamaha FJ 1100 (Gespann)
    RS219 9 x 16 9.0 108.00 4 57.0 Audi 80, 90 Typ 89
    RS220 7 x 16 20.0 108.00 4 63.5 Ford Sierra Cosworth
    RS221 8 x 16 20.0 108.00 4 63.5 Ford Sierra Cosworth HA
    RS223 7 x 16 30.0 108.00 4 63.5 Ford Cosworth
    RS226 8 x 16 30.0 110.00 5 65.0 Opel Omega,Senator
    RS227 6 1/2 x 15 32.0 108.00 4 65.0 Saab 9000
    RS228 9 x 16 22.0 108.00 4 57.0 Audi 80,90
    RS229 7 x 16 24.0 98.00 4 58.1 Fiat,Lancia
    RS230 7 1/2 x 16 18.0 98.00 4 58.1 Fiat,Lancia
    RS231 7 x 16 52.0 108.00 5 60.0 Renault R 25 Turbo
    RS236 8 1/2 x 17 30.0 112.00 5 57.0 Audi 200 V8
    RS237 8 x 15 -10.0 100.00 4 57.0 VW Golf II
    RS238 6 1/2 x 15 34.0 114.30 5 66.0 Nissan Maxima
    RS239 7 x 16 37.0 114.30 4 66.0 Nissan 240 SX
    RS240 6 x 14 40.0 100.00 4 56.0 Honda Accord Concerto CR-X
    RS241 6 x 14 35.0 114.30 4 66.0 Nissan Bluebird,Silvia
    RS242 6 x 14 30.0 100.00 4 57.0 Isuzu Toyota Gemeni MR2
    RS249 7 x 15 30.0 98.00 5 58.1 Alfa 164
    RS250 8 1/2 x 16 25.0 114.30 5 60.0 Toyota Supra
    RS251 9 x 16 30.0 112.00 5 66.5 MB 124 VA
    RS252 9 x 16 25.0 112.00 5 66.5 MB 124 HA
    RS254 8 1/2 x 17 28.0 114.30 5 60.0 Toyota Supra
    RS255 8 1/2 x 16 56.0 130.00 5 71.6 Porsche 928 S VA
    RS256 9 1/2 x 16 43.0 130.00 5 71.6 Porsche 928 S HA
    RS257 8 x 17 49.0 130.00 5 71.6 Porsche 964 VA
    RS258 9 1/2 x 17 52.0 130.00 5 71.6 Porsche 964 HA
    RS268 7 1/2 x 16 30.0 114.30 5 59.5 Mazda 626
    RS269 7 1/2 x 16 28.0 100.00 5 54.1 Toyota Celica,Camry
    RS270 8 1/2 x 17 13.0 130.00 5 71.6 Porsche 964
    RS271 10 x 17 0.0 130.00 5 71.6 Porsche 964 HA
    RS274 9 x 17 20.0 114.30 5 60.0 Toyota Supra VA
    RS275 10 x 17 7.0 114.30 5 60.0 Toyota Supra HA
    RS276 9 1/2 x 17 0.0 112.00 5 66.5 MB 124,126 VA
    RS277 12 x 17 -45.0 112.00 5 66.5 MB 124,126 HA
    RS280 7 1/2 x 16 35.0 114.30 4 64.1 Honda Accord 90
    RS281 7 1/2 x 16 34.0 114.30 5 60.1 Toyota Lexus 400
    RS282 7 x 16 35.0 114.30 5 66.0 Nissan Infinity Q 45
    RS284 10 x 17 10.0 110.00 5 65.0 Opel Omega
    RS285 8 1/2 x 18 13.0 120.00 5 72.5 BMW 5/H,7/1,evtl.8
    RS286 9 1/2 x 18 13.0 120.00 5 72.5 BMW 5/H,7/1,7/G,evtl.8 HA
    RS288 7 1/2 x 15 32.0 108.00 4 57.0 Audi 80,90,Q Typ 89
    RS289 8 1/2 x 18 20.0 112.00 5 66.5 MB 129
    RS290 9 1/2 x 18 18.0 112.00 5 66.5 MB 129 HA
    RS291 8 x 16 30.0 114.30 4 66.0 Nissan 200SX
    RS292 10 x 16 30.0 112.00 5 66.5 MB 124
    RS295 8 1/2 x 17 25.0 110.00 5 65.0 Opel Omega
    RS296 8 1/2 x 16 22.0 112.00 5 66.5 MB 129 VA
    RS297 7 x 15 40.0 114.30 4 64.1 Honda Accord 90
    RS298 7 1/2 x 15 32.0 114.30 5 66.0 Nissan Infinity Q 45
    RS301 7 1/2 x 17 33.0 100.00 5 57.0 VW Golf/Passat III plus
    RS302 8 x 17 40.0 120.00 5 72.5 BMW 3/C
    RS303 7 x 16 40.0 114.30 4 64.1 Honda Accord 90
    RS304 7 1/2 x 15 30.0 100.00 5 54.0 Toyota Carina
    RS305 7 1/2 x 15 30.0 114.30 5 59.6 Mazda 626 MR2 90
    RS306 8 x 16 43.0 114.30 5 70.0 Honda NSX VA
    RS307 9 x 17 42.0 114.30 5 64.0 Honda NSX HA
    RS311 10 x 17 16.0 130.00 5 71.6 Porsche C62 VA
    RS312 13 x 17 -22.0 130.00 5 71.6 Porsche C62 HA
    RS314 7 1/2 x 16 33.0 108.00 4 57.0 Audi 80,90
    RS315 8 x 17 35.0 100.00 4 56.5 Opel Calibra
    RS319 7 1/2 x 15 32.0 100.00 4 54.0 Mazda 323
    RS325 7 1/2 x 16 30.0 114.30 5 59.6 Ford,Mazda Probe,626/RX 7
    RS326 7 1/2 x 16 35.0 114.30 4 66.0 Nissan 200 SX,Primera
    RS331 8 x 17 35.0 114.30 5 60.0 Toyota Lexus 400
    RS332 9 x 15 15.0 100.00 5 57.0 VW Corrado VR6
    RS333 11 1/2 x 15 -52.0 100.00 5 57.0 VW Corrado VR6 HA
    RS334 7 1/2 x 17 33.0 108.00 4 57.0 Audi 80;90 Typ 89
    RS335 8 1/2 x 17 32.0 114.30 5 66.0 Nissan 300 ZX
    RS354 7 1/2 x 16 28.0 100.00 4 56.0 Honda Civic
    RS700w 8 1/2 x 18 22.0 120.00 5 0.0 BMW 5/neu,7/G
    RS701w 10 x 18 25.0 120.00 5 0.0 BMW 5/neu,7/G HA
    RS702w 8 x 17 35.0 112.00 5 0.0 Audi,MB A4,A6,A8;124,E420,202
    RS703w 8 x 17 40.0 120.00 5 72.5 BMW 3/C,3/B,M3
    RS704w 8 1/2 x 18 22.0 112.00 5 66.5 MB 124,E500,R129,600
    RS705w 10 x 18 20.0 112.00 5 66.5 MB 124,E500,R129,600 HA
    RS706w 8 1/2 x 18 45.0 130.00 5 71.6 Porsche 993,Turbo
    RS707w 10 x 18 50.0 130.00 5 71.6 Porsche 993,Turbo HA
    RS708w 9 x 20 22.0 120.00 5 0.0 BMW 5/D,7/G
    RS709w 10 x 20 25.0 120.00 5 0.0 BMW 5/D,7/G HA
    RS710w 8 1/2 x 18 32.0 112.00 5 0.0 Audi,MB A8;124,E420,202,140
    RS711w 10 x 18 40.0 112.00 5 66.5 MB 140
    RS712w 8 x 17 38.0 114.30 5 0.0 Lexus,Toyota,Nissan LS/SC400,Supra,Inf.Q45
    RS713w 8 x 17 15.0 120.00 5 0.0 BMW 5/H,7/1,5/D
    RS714w 8 1/2 x 18 38.0 120.00 5 72.5 BMW 3/C M3
    RS715w 7 x 17 35.0 100.00 4 0.0 Hon.Maz.Mit.Opel,Ren.Rover Seat,Tojota,Volvo,VW
    RS716w 7 x 17 40.0 114.30 4 0.0 Hon.Hyn.Mit.Nissan,Rover
    RS717w 8 1/2 x 18 40.0 114.30 5 0.0 Mazda,Nissan,Toyota
    RS718w 10 x 18 45.0 114.30 5 0.0 Mazda,Nissan,Toyota
    RS719w 8 1/2 x 18 28.0 120.65 5 73.8 Jaguar XJ,XJ-R

  4. #24
    Sersan Mayor
    Posts
    845
    Power
    M-Store Point
    0
    Online
    1 Wk 16 Hrs 30 Mins 47 Secs
    buset dehhh......

    di bantai lgsg ama pakarnya BBS hehehe...

  5. #25
    Letnan Kolonel
    Location
    Jakarta sedikit coret alias Cinere
    Posts
    6,984
    Power
    15
    M-Store Point
    0
    Online
    3 Wks 1 Hr 49 Mins 15 Secs
    sembah sujud dah sama Mr.BBS Indonesia
    BMW Fanatics & OEM Fetish
    | E36 M43B18 | E28 M20B20 | E30 M40B18 | E30 M20B25 | E34 M20B20 | E36 M40B18 | E34 M50B26 MST | E36 M50B20 | E34 M50B25 | E36 M52B25 | E46 M43TUB18 |

  6. #26
    Letnan Dua
    Location
    jakarta - indonesia
    Posts
    1,425
    Power
    M-Store Point
    0
    Online
    15 Hrs 54 Mins 37 Secs
    waduh ga lah, sambil sharing sharing aja.

    Info menarik, BBS sekarang sudah bukan punya Germany. Melainkan Belgium. Sekitar setahunan lalu pengusaha Belgium membeli companynya. Produksi tetap berjalan di Germany, Japan dan USA.

    BBS singkatan dari Baumgartner Brand Schiltach. Baumgartner adalah nama dari pendirinya dan Schiltach adalah kota di Germany dimana Baumgartner pertama kali mendirikan perusahaannya.

  7. #27
    Kopral Dua
    Posts
    35
    Power
    M-Store Point
    0
    Online
    N/A
    Quote Originally Posted by mbemblue View Post
    yahhh gw cuma pernah pake BBS style 5 doank, sekarang di pake RIO di UK ex gw jg.

    pict pas nempel di mbl gw nih
    gw jg punya velg yg kaya di fotonya mr mbemblue, bawaan standard E34 gw
    btw tu type nya apa sih? di velg nya cuma ada tulisan BBS BMW KBA43262
    ada yg tau dimana dapetin dop(wheel caps)nya ga?
    gw dpt velg nya tanpa dop semuanya

  8. #28
    Letnan Dua
    Location
    on my recaro seat !
    Posts
    1,430
    Power
    M-Store Point
    0
    Online
    2 Hrs 43 Mins 58 Secs
    Quote Originally Posted by posmaxx View Post
    BBS yah..

    Hmm..saya punya satu set BBS RM 8x15 et 18 and 8,5x15 et 14 buat di BMW 2002 yang belum kelar kelar :p..berikut gambarnya :






    Sama satu set BBS RS II 9x20 and 10x20

    edannnnnnnnnnnnnnn.............. RM akhirnya nongol jugaaaa.............. mantappp bgt masss.....:smt023

  9. #29
    Brigadir Jendral
    Posts
    10,070
    Power
    16
    M-Store Point
    0
    Online
    6 Days 16 Hrs 8 Mins 14 Secs
    Quote Originally Posted by cipmunk View Post
    gw jg punya velg yg kaya di fotonya mr mbemblue, bawaan standard E34 gw
    btw tu type nya apa sih? di velg nya cuma ada tulisan BBS BMW KBA43262
    ada yg tau dimana dapetin dop(wheel caps)nya ga?
    gw dpt velg nya tanpa dop semuanya
    coba hubungin yg nicknya gitsoy bro

  10. #30
    Letnan Dua
    Location
    on my recaro seat !
    Posts
    1,430
    Power
    M-Store Point
    0
    Online
    2 Hrs 43 Mins 58 Secs
    Quote Originally Posted by helvetica View Post
    waduh ga lah, sambil sharing sharing aja.

    Info menarik, BBS sekarang sudah bukan punya Germany. Melainkan Belgium. Sekitar setahunan lalu pengusaha Belgium membeli companynya. Produksi tetap berjalan di Germany, Japan dan USA.

    BBS singkatan dari Baumgartner Brand Schiltach. Baumgartner adalah nama dari pendirinya dan Schiltach adalah kota di Germany dimana Baumgartner pertama kali mendirikan perusahaannya.
    salute.................. angkat gelas buat Mr.helvetica yg punya info yg banyak bgt ttg BBS yg pastinya akan berguna bgt buat kita2 thank you very much Mr ! :smt023




Page 3 of 935 FirstFirst 1234567 ... LastLast
Datsun 300x250 MBtech

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Similar Threads

  1. ENKEI WHEELS THREAD
    By hedri_ananda in forum Diskusi Kaki-Kaki
    Replies: 4442
    Last Post: 12th October 2017, 13:26
  2. BRIDGESTONE WHEELS THREAD
    By sikasik in forum Diskusi Kaki-Kaki
    Replies: 62
    Last Post: 30th May 2017, 14:20
  3. OZ wheels thread
    By dexza in forum Diskusi Kaki-Kaki
    Replies: 1416
    Last Post: 2nd May 2016, 18:26
  4. Watanabe Wheels Thread
    By uras in forum Diskusi Kaki-Kaki
    Replies: 19
    Last Post: 17th July 2015, 17:52
  5. CUSTOM WHEELS THREAD
    By RollingStock in forum Diskusi Kaki-Kaki
    Replies: 7
    Last Post: 19th October 2014, 08:43
Back to top
